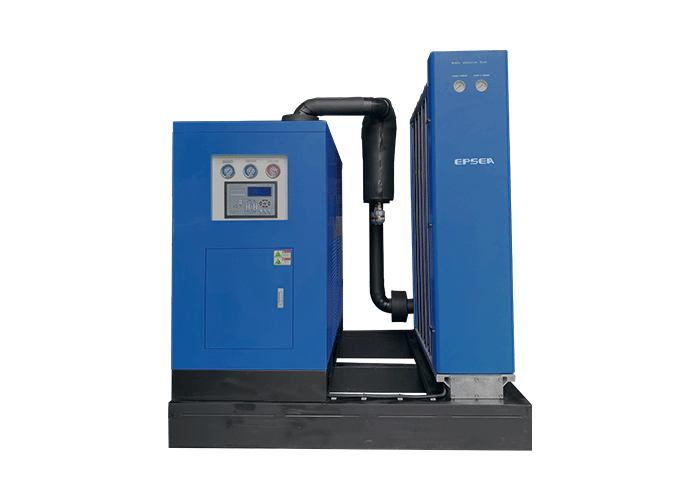

The Epsea Modular Combined Air Dryer integrates refrigerated drying, precision filtration, and adsorption drying into one compact, high-performance unit. This all-in-one design delivers clean, dry compressed air to meet strict quality requirements while reducing equipment footprint, installation time, and the need for additional components. Equipped with intelligent controls, high-quality pneumatic valves, and optimised structural design, the Modular Combined Air Dryer offers flexible operation, low energy consumption, and extended product life — making it ideal for demanding industrial environments. Note: Other special standards can be customised; for more details please contact us. Note: Other special standards can be customised; for more details please contact us. I wanted to let you know the team you sent to perform the Air Compressor motor overhaul were nothing short of exemplary. Communication were excellent, they cleaned up everything they used and safely disposed of unwanted consumables. They even swept out the entire compressor house. I also saw great attention to detail. When the motor was removed they repainted all of the internal surfaces of the compressor cabinet. I thought this was a real nice touch. We received an excellent 13 page motor report. Your generosity is hugely appreciated and it’s people like you, doing little things like this that help keep our small schools afloat. So thank you so much for all of your help – I can’t wait to pop outside (once the sun gets through the fog) and blow up the tyres pf our sports gear trolley!!! Thanks very much for coming in and getting that job sorted not only on a Saturday but with such short notice, the team really appreciated that. Thanks for the compressor Darren. We are blessed to have you just down the road! I wanted to thank you for the detail you put on our invoices as it makes our job easier. Also the service received from our local branch is outstanding. Call us on 0800 886 755 or if you’d like us to get in touch with you, please fill in this form and we’ll get back to you ASAP.Modular Combined Air Dryer
Combining a refrigerated air dryer, precision filter, and adsorption air dryer in a single unit, this integrated system offers a space-saving solution that requires no additional equipment to achieve high air quality. The compact structure makes installation simple while maintaining excellent performance.
A high-performance integrated controller allows operation of both the refrigerated and adsorption dryers simultaneously or the adsorption dryer independently, depending on air quality requirements. The controller includes power-off self-protection, automatic recovery to pre-outage settings, and Modbus protocol for PC connectivity and monitoring via RS485.
Equipped with high-performance pneumatic control valves and standard low-power solenoid valves for quick, precise action and long service life. A sound muffler with multi-layer fibre and mechanical noise reduction technology keeps noise levels low.
The unique design enables the adsorption dryer to operate at low temperatures and regenerate at normal temperatures, enhancing both adsorption and regeneration efficiency. This also improves the precision filter’s performance and prevents condensation on pipelines. The result is reduced system power consumption and extended service life for all components.
Parameter
Specification
Intake Temperature
10–60 °C
Ambient Temperature
2–45 °C
Pressure Dew Point
-40 °C
Regenerative Air Consumption
5–7%
Pressure Loss
≤ 0.065 MPa
Working Pressure Range
0.6–1.0 MPa
