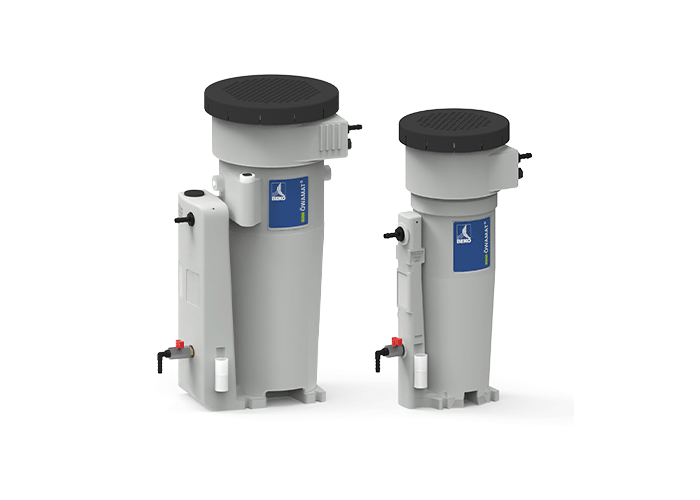

Öwamat Oil Water Separators
For economic, technical and legal reasons, anyone who runs compressed air equipment, must control and treat condensate. The Öwamat oil water separators available from CompAir, efficiently, reliably and cost effectively separate oil from the compressed air condensate. The final result is purified water suitable for discharge directly into most sewer systems.
- Cost effective Öwamat oil water separators are known for their superior cost effectiveness. They incur no energy costs and require only low maintenance.
- Operator friendly Thanks to an operator friendly cartridge technology, the Öwamat oil water separators are simple to handle, enabling quick and clean replacement of the cartridges with minimised waste and easy disposal.
- Reliable operation The newly designed pressure relief chamber with non-turbulent condensate conduction and the overflow protected oil receiver have further enhanced the overall operational reliability of the Öwamat oil water separators.
- Easy to service The lightweight cartridge on the Öwamat oil water separators is easy to change making service simple.
|Öwamat® 10||Öwamat® 12||Öwamat® 14||Öwamat® 15||Öwamat® 16|
|Container volume||10 l||30.6 l||61.3 l||115.5 l||228.4 l|
|Filling volume with preseparator||22.7 l||46.3 l||84.3 l||158.8 l|
|Filling volume without preseparator||4.3 l||20.3 l||41.5 l||72.5 l||137.2 l|
|Condensate inflow (hose)||2 x G1/2 (di=10mm)||3 x G1/2 (di=10mm)||3 x G1/2 (di=10mm)||3 x G1/2 (di=13mm)||3 x G1/2 (di=13mm)|
|1 x G1 (di=25mm)||1 x G1 (di=25mm)||1 x G1 (di=25mm)||1 x G1 (di=25mm)|
|Water outflow (hose)||G1/2 (di=10mm)||G1/2 (di=13mm)||G1 (di=25mm)||G1 (di=25mm)||G1 (di=25mm)|
|Oil outflow||DN 25||DN 25||DN 40||DN 40|
|Oil collector||2 x 51||2 x 51||2 x 101||2 x 201|
|Weight empty||13.5 kg||18.5 kg||36.5 kg||53 kg|
|Weight empty without preseparator||3,5 kg||12 kg||16 kg||32 kg||42 kg|
|Min./max. temperature||+5 to +60oC|
|Max. operating pressure at inlet||16 bar|
|Prefilter||2.5 l||2.5 l||6.7 l||18.5 l||36.5 l|
|Main jet||2.0 l||5.4 l||10.4 l||>202. l||40.3 l|
