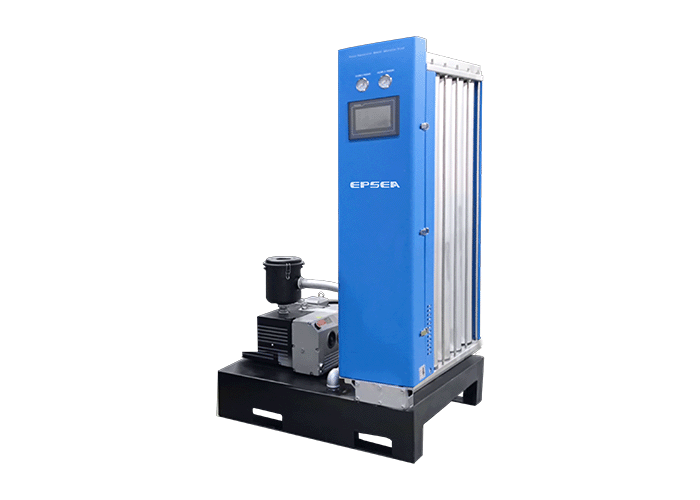

Vacuum Regenerative Modular Desiccant Air Dryer

The Epsea Vacuum Regenerative Modular Adsorption Air Dryer combines advanced adsorption technology with energy-saving vacuum regeneration to deliver high-quality, ultra-dry compressed air. By reducing regeneration gas consumption to as little as 2%, it offers significant operational cost savings without compromising performance.

Designed for stable, long-term operation, this dryer is built with a compact, low-maintenance structure and intelligent monitoring controls, making it an ideal choice for industries that require reliable moisture removal with minimal downtime.

Vacuum Regenerative Modular Desiccant Air Dryer2

KEY BENEFITS TECHNICAL DATA

Energy-Efficient Vacuum Regeneration
This system uses vacuum regeneration to cut regeneration gas consumption down to just 2%. The integrated vacuum pump operates with minimal vibration and low noise, ensuring sustainable, stable performance over extended periods.
Intelligent Monitoring & User-Friendly Interface
An intelligent computer board monitors system performance in real time, while the user-friendly man-machine interface provides clear operating data and straightforward control.
Compact, Low-Maintenance Design
The modular structure makes installation and maintenance simple, saving space and reducing service time, while maintaining a consistently low dew point for dependable air quality.

Parameter	Specification
Intake Temperature	≤ 38 °C
Working Pressure Range	0.6–1.0 MPa
Inlet Oil Content	≤ 0.1 ppm
Regenerative Air Consumption	≤ 2%
Pressure Dew Point	-20 to -40 °C
Adsorbent	Alumina molecular sieve
Regeneration Mode	Vacuum Regeneration

Note: Other special standards can be customised; for more details please contact us.
