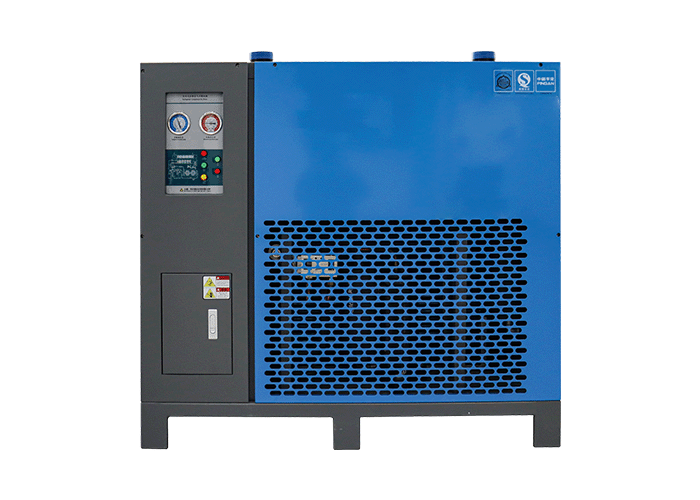

The Epsea Air Cooled Refrigerated Air Dryer is engineered to provide reliable, energy-efficient compressed air drying for a wide range of industrial applications. By rapidly cooling incoming compressed air, removing moisture, and delivering a stable dew point, this system helps protect downstream equipment, extend service life, and maintain product quality. Designed with high-performance cooling, efficient water separation, and low pressure loss, the unit offers consistent operation even under varying load conditions. Its compact, air-cooled design makes it easy to install and maintain, while ensuring optimal performance in ambient temperatures ranging from 2°C to 45°C.
The unique structural design of the pre-cooling channel ensures that incoming compressed air is rapidly and uniformly cooled. Ultra-low pressure loss throughout the process enables the refrigeration cycle to operate with maximum efficiency. The generator’s streamlined structure simplifies maintenance and does not fall under pressure vessel classification, reducing both compliance obligations and ownership costs.
Note: Special configurations can be customised. For more details, please contact us. Your generosity is hugely appreciated and it’s people like you, doing little things like this that help keep our small schools afloat. So thank you so much for all of your help – I can’t wait to pop outside (once the sun gets through the fog) and blow up the tyres pf our sports gear trolley!!! Thanks very much for coming in and getting that job sorted not only on a Saturday but with such short notice, the team really appreciated that. Thanks for the compressor Darren. We are blessed to have you just down the road! I wanted to thank you for the detail you put on our invoices as it makes our job easier. Also the service received from our local branch is outstanding. Call us on 0800 886 755 or if you’d like us to get in touch with you, please fill in this form and we’ll get back to you ASAP.Air Cooled Refrigerated Air Dryer
An improved evaporation channel allows the liquid refrigerant to fully absorb the heat from compressed air, ensuring complete vaporisation back to the compressor suction port. This process efficiently cools the gaseous water in the air, causing a large volume of liquid water to condense and be removed.
A two-stage separation process ensures maximum removal of moisture. The coarse separation stage removes the majority of liquid water, while the fine separation stage eliminates smaller droplets carried by airflow. This double-layer approach delivers higher separation efficiency and a more stable dew point.
Parameter
Specification
Intake Temperature
10–60 °C
Cooling
Air Cooled
Ambient Temperature
2–45 °C
Pressure Dew Point
2–7 °C
Working Pressure Range
0.6–1.3 MPa
